产品描述
减速电机在12VDC下的参数表
|
Stage 段数 |
Ratio 减速比 |
Rated current 额定电流 |
Rated speed 额定转速 |
Rated torque 额定扭矩 |
Max.momentary current 最大瞬间电流 |
Max.momentary torque 最大瞬间扭矩 |
Wght 重量 |
|
| 1 | 3.789:1 | 6970 mA | 3375 RPM | 129 mNm | 10032 mA | 193 mNm | ||
| 1 | 4.313:1 | 6970 mA | 2965 RPM | 147 mNm | 10032 mA | 220 mNm | ||
| 1 | 5.077:1 | 6970 mA | 2519 RPM | 173 mNm | 10032 mA | 259 mNm | ||
| 2 | 14.4:1 | 6970 mA | 888 RPM | 416 mNm | 10032 mA | 624 mNm | ||
| 2 | 25.8:1 | 6970 mA | 496 RPM | 746 mNm | 10032 mA | 1118 mNm | ||
| 2 | 39.7:1 | 6970 mA | 322 RPM | 1147 mNm | 10032 mA | 1721 mNm | ||
| 3 | 80.2:1 | 6970 mA | 159 RPM | 1970 mNm | 10032 mA | 2955 mNm | ||
| 3 | 111.2:1 | 6970 mA | 115 RPM | 2732 mNm | 10032 mA | 4097 mNm | ||
| 3 | 130.9:1 | 6970 mA | 98 RPM | 3216 mNm | 10032 mA | 4823 mNm | ||
| 3 | 250:1 | 5330 mA | 54 RPM | 4500 mNm | 7028 mA | 6200 mNm | ||
| 4 | 304:1 | 5186 mA | 44 RPM | 4500 mNm | 6827 mA | 6200 mNm | ||
| 4 | 346:1 | 4660 mA | 39.5 RPM | 4500 mNm | 6102 mA | 6200 mNm | ||
| 4 | 407:1 | 4091 mA | 34 RPM | 4500 mNm | 5313 mA | 6200 mNm | ||
| 4 | 664:1 | 2833 mA | 21.6 RPM | 4500 mNm | 3583 mA | 6200 mNm | ||
减速电机在24VDC下的参数表
|
Stage 段数 |
Ratio 减速比 |
Rated current 额定电流 |
Rated speed 额定转速 |
Rated torque 额定扭矩 |
Max.momentary current 最大瞬间电流 |
Max.momentary torque 最大瞬间扭矩 |
Wght 重量 |
|
| 1 | 3.789:1 | 3485 mA | 3375 RPM | 129 mNm | 5016 mA | 193 mNm | ||
| 1 | 4.313:1 | 3485 mA | 2965 RPM | 147 mNm | 5016 mA | 220 mNm | ||
| 1 | 5.077:1 | 3485 mA | 2519 RPM | 173 mNm | 5016 mA | 259 mNm | ||
| 2 | 14.4:1 | 3485 mA | 888 RPM | 416 mNm | 5016 mA | 624 mNm | ||
| 2 | 25.8:1 | 3485 mA | 496 RPM | 746 mNm | 5016 mA | 1118 mNm | ||
| 2 | 39.7:1 | 3485 mA | 322 RPM | 1147 mNm | 5016 mA | 1721 mNm | ||
| 3 | 80.2:1 | 3485 mA | 159 RPM | 1970 mNm | 5016 mA | 2955 mNm | ||
| 3 | 111.2:1 | 3485 mA | 115 RPM | 2732 mNm | 5016 mA | 4097 mNm | ||
| 3 | 130.9:1 | 3485 mA | 98 RPM | 3216 mNm | 5016 mA | 4823 mNm | ||
| 3 | 250:1 | 2665 mA | 54 RPM | 4500 mNm | 3514 mA | 6200 mNm | ||
| 4 | 304:1 | 2593 mA | 44 RPM | 4500 mNm | 3414 mA | 6200 mNm | ||
| 4 | 346:1 | 2330 mA | 39.5 RPM | 4500 mNm | 3051 mA | 6200 mNm | ||
| 4 | 407:1 | 2046 mA | 34 RPM | 4500 mNm | 2657 mA | 6200 mNm | ||
| 4 | 664:1 | 1417 mA | 21.6 RPM | 4500 mNm | 1792 mA | 6200 mNm | ||
 |

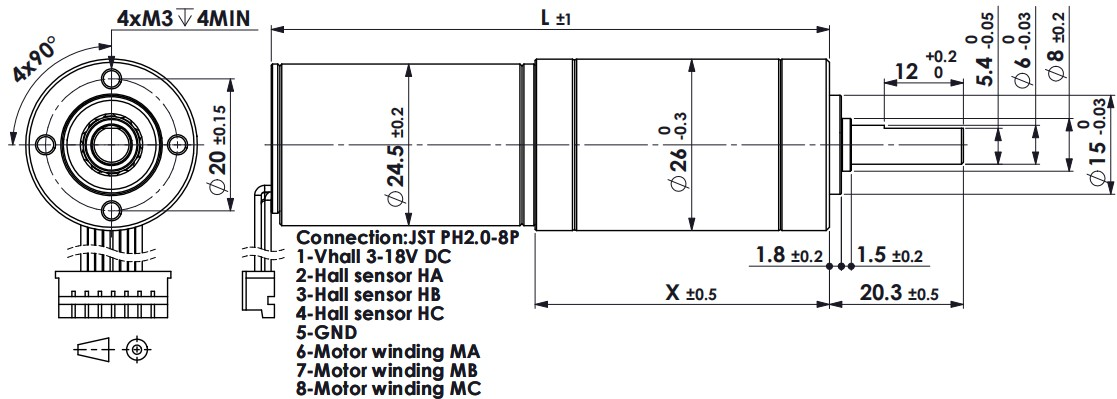

Gearbox stages | Length of gearbox X | Length of gearmotor L |
| 齿轮箱段数 | 齿轮箱长 X | 减速电机总成 L | |
| 1 | 21.7 | 74.7 | |
| 2 | 31.4 | 84.4 | |
| 3 | 38.0 | 91.0 | |
| 4 | 44.6 | 97.6 |
我司可根据客户要求设计和生产相关产品，可适配多类型电机。
