产品描述
减速电机在6VDC下的参数表
|
Stage 段数 |
Ratio 减速比 |
Rated current 额定电流 |
Rated speed 额定转速 |
Rated torque 额定扭矩 |
Max.momentary current 最大瞬间电流 |
Max.momentary torque 最大瞬间扭矩 |
Weight 重量 |
|
| 1 | 4:1 | 236 mA | 3377 RPM | 1.6 mNm | 328 mA | 2.4 mNm | ||
| 2 | 16:1 | 236 mA | 844 RPM | 5.1 mNm | 328 mA | 7.7 mNm | ||
| 3 | 64:1 | 236 mA | 211 RPM | 16.4 mNm | 328 mA | 24.6 mNm | ||
| 4 | 256:1 | 236 mA | 53 RPM | 52.4 mNm | 328 mA | 78.6 mNm | ||
| 5 | 1024:1 | 236 mA | 13.2 RPM | 168 mNm | 328 mA | 252 mNm | ||
减速电机在12VDC下的参数表
|
Stage 段数 |
Ratio 减速比 |
Rated current 额定电流 |
Rated speed 额定转速 |
Rated torque 额定扭矩 |
Max.momentary current 最大瞬间电流 |
Max.momentary torque 最大瞬间扭矩 |
Weight 重量 |
|
| 1 | 4:1 | 118 mA | 3377 RPM | 1.6 mNm | 164 mA | 2.4 mNm | ||
| 2 | 16:1 | 118 mA | 844 RPM | 5.1 mNm | 164 mA | 7.7 mNm | ||
| 3 | 64:1 | 118 mA | 211 RPM | 16.4 mNm | 164 mA | 24.6 mNm | ||
| 4 | 256:1 | 118 mA | 53 RPM | 52.4 mNm | 164 mA | 78.6 mNm | ||
| 5 | 1024:1 | 118 mA | 13.2 RPM | 168 mNm | 164 mA | 252 mNm | ||
 |

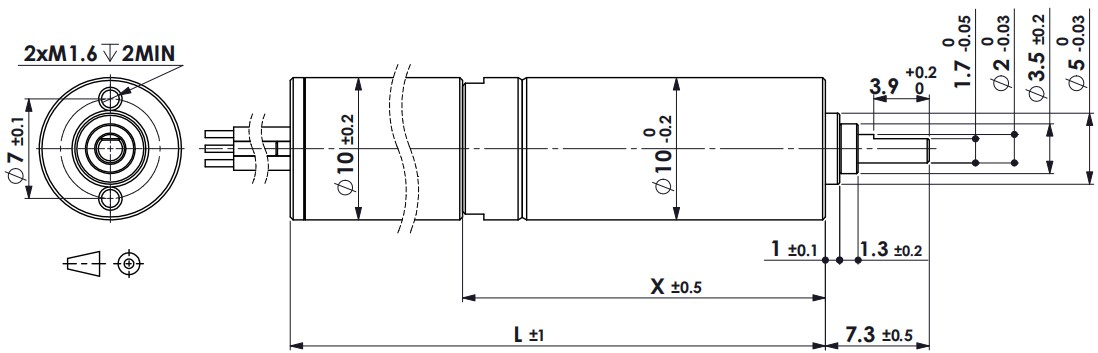

Gearbox stages | Length of gearbox X | Length of gearmotor L |
| 齿轮箱段数 | 齿轮箱长 X | 减速电机总成 L | |
| 1 | 11.5 | 36.5 | |
| 2 | 15.0 | 40.0 | |
| 3 | 18.5 | 43.5 | |
| 4 | 22.0 | 47.0 | |
| 5 | 25.5 | 50.5 |
我司可根据客户要求设计和生产相关产品，可适配多类型电机。
