产品描述
减速电机在12VDC下的参数表
|
Stage 段数 |
Ratio 减速比 |
Rated current 额定电流 |
Rated speed 额定转速 |
Rated torque 额定扭矩 |
Max.momentary current 最大瞬间电流 |
Max.momentary torque 最大瞬间扭矩 |
Wght 重量 |
|
| 1 | 3.789:1 | 2856 mA | 3012 RPM | 58 mNm | 4062 mA | 87 mNm | ||
| 1 | 4.313:1 | 2856 mA | 2646 RPM | 66 mNm | 4062 mA | 99 mNm | ||
| 1 | 5.077:1 | 2856 mA | 2248 RPM | 78 mNm | 4062 mA | 117 mNm | ||
| 2 | 14.4:1 | 2856 mA | 793 RPM | 187 mNm | 4062 mA | 281 mNm | ||
| 2 | 25.8:1 | 2856 mA | 442 RPM | 336 mNm | 4062 mA | 504 mNm | ||
| 2 | 39.7:1 | 2856 mA | 287 RPM | 516 mNm | 4062 mA | 774 mNm | ||
| 3 | 80.2:1 | 2856 mA | 142 RPM | 887 mNm | 4062 mA | 1330 mNm | ||
| 3 | 111.2:1 | 2856 mA | 103 RPM | 1229 mNm | 4062 mA | 1844 mNm | ||
| 3 | 130.9:1 | 2856 mA | 87 RPM | 1447 mNm | 4062 mA | 2171mNm | ||
| 3 | 250:1 | 2203 mA | 47 RPM | 2000 mNm | 3069 mA | 3000 mNm | ||
| 4 | 304:1 | 2147 mA | 39 RPM | 2000 mNm | 2985 mA | 3000 mNm | ||
| 4 | 346:1 | 1944 mA | 34.7 RPM | 2000 mNm | 2680 mA | 3000 mNm | ||
| 4 | 407:1 | 1723 mA | 29.8 RPM | 2000 mNm | 2349 mA | 3000 mNm | ||
| 4 | 664:1 | 1239 mA | 18.7 RPM | 2000 mNm | 1622 mA | 3000 mNm | ||
减速电机在24VDC下的参数表
|
Stage 段数 |
Ratio 减速比 |
Rated current 额定电流 |
Rated speed 额定转速 |
Rated torque 额定扭矩 |
Max.momentary current 最大瞬间电流 |
Max.momentary torque 最大瞬间扭矩 |
Wght 重量 |
|
| 1 | 3.789:1 | 1428 mA | 3012 RPM | 58 mNm | 2031 mA | 87 mNm | ||
| 1 | 4.313:1 | 1428 mA | 2646 RPM | 66 mNm | 2031 mA | 99 mNm | ||
| 1 | 5.077:1 | 1428 mA | 2248 RPM | 78 mNm | 2031 mA | 117 mNm | ||
| 2 | 14.4:1 | 1428 mA | 793 RPM | 187 mNm | 2031 mA | 281 mNm | ||
| 2 | 25.8:1 | 1428 mA | 442 RPM | 336 mNm | 2031 mA | 504 mNm | ||
| 2 | 39.7:1 | 1428 mA | 287 RPM | 516 mNm | 2031 mA | 774 mNm | ||
| 3 | 80.2:1 | 1428 mA | 142 RPM | 887 mNm | 2031 mA | 1330 mNm | ||
| 3 | 111.2:1 | 1428 mA | 103 RPM | 1229 mNm | 2031 mA | 1844 mNm | ||
| 3 | 130.9:1 | 1428 mA | 87 RPM | 1447 mNm | 2031 mA | 2171mNm | ||
| 3 | 250:1 | 1102 mA | 47 RPM | 2000 mNm | 1535 mA | 3000 mNm | ||
| 4 | 304:1 | 1074 mA | 39 RPM | 2000 mNm | 1492 mA | 3000 mNm | ||
| 4 | 346:1 | 972 mA | 34.7 RPM | 2000 mNm | 1340 mA | 3000 mNm | ||
| 4 | 407:1 | 862 mA | 29.8 RPM | 2000 mNm | 1174 mA | 3000 mNm | ||
| 4 | 664:1 | 619 mA | 18.7 RPM | 2000 mNm | 811 mA | 3000 mNm | ||
 |

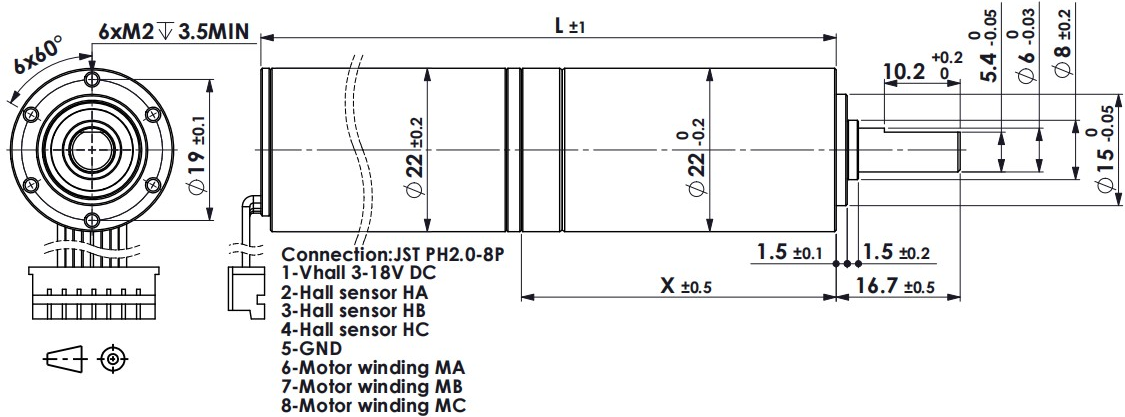

Gearbox stages | Length of gearbox X | Length of gearmotor L |
| 齿轮箱段数 | 齿轮箱长 X | 减速电机总成 L | |
| 1 | 18.7 | 66.7 | |
| 2 | 26.2 | 74.2 | |
| 3 | 31.6 | 79.6 | |
| 4 | 37.0 | 85.0 |
我司可根据客户要求设计和生产相关产品，可适配多类型电机。
