产品描述
减速电机在6VDC下的参数表
|
Stage 段数 |
Ratio 减速比 |
Rated current 额定电流 |
Rated speed 额定转速 |
Rated torque 额定扭矩 |
Max.momentary current 最大瞬间电流 |
Max.momentary torque 最大瞬间扭矩 |
Weight 重量 |
|
| 1 | 4:1 | 1760 mA | 5180 RPM | 9.6 mNm | 2540 mA | 14.4 mNm | ||
| 2 | 16:1 | 1760 mA | 1295 RPM | 30.7 mNm | 2540 mA | 46.1 mNm | ||
| 3 | 64:1 | 1760 mA | 324 RPM | 98.3 mNm | 2540 mA | 147.5 mNm | ||
| 4 | 256:1 | 1690 mA | 82 RPM | 300 mNm | 2410 mA | 450 mNm | ||
| 5 | 1024:1 | 820 mA | 23 RPM | 400 mNm | 1150 mA | 600 mNm | ||
减速电机在12VDC下的参数表
|
Stage 段数 |
Ratio 减速比 |
Rated current 额定电流 |
Rated speed 额定转速 |
Rated torque 额定扭矩 |
Max.momentary current 最大瞬间电流 |
Max.momentary torque 最大瞬间扭矩 |
Weight 重量 |
|
| 1 | 4:1 | 880 mA | 5180 RPM | 9.6 mNm | 1270 mA | 14.4 mNm | ||
| 2 | 16:1 | 880 mA | 1295 RPM | 30.7 mNm | 1270 mA | 46.1 mNm | ||
| 3 | 64:1 | 880 mA | 324 RPM | 98.3 mNm | 1270 mA | 147.5 mNm | ||
| 4 | 256:1 | 845 mA | 82 RPM | 300 mNm | 1205 mA | 450 mNm | ||
| 5 | 1024:1 | 410 mA | 23 RPM | 400 mNm | 575 mA | 600 mNm | ||
 |

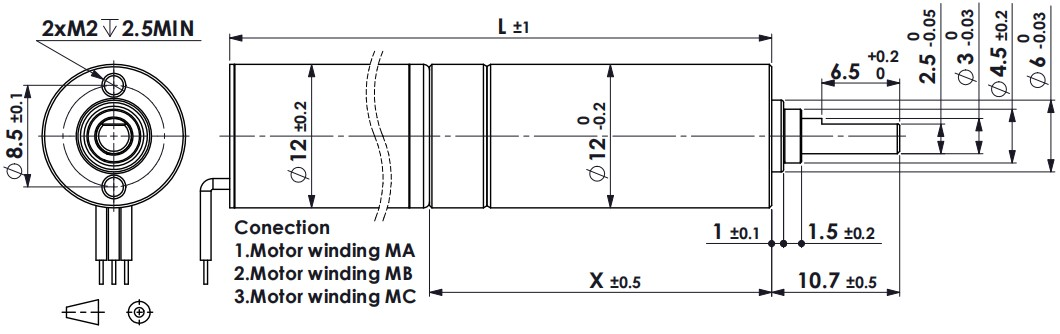

Gearbox stages | Length of gearbox X | Length of gearmotor L |
| 齿轮箱段数 | 齿轮箱长 X | 减速电机总成 L | |
| 1 | 13.2 | 43.2 | |
| 2 | 17.05 | 47.05 | |
| 3 | 20.9 | 50.9 | |
| 4 | 24.75 | 54.75 | |
| 5 | 28.6 | 58.6 |
我司可根据客户要求设计和生产相关产品，可适配多类型电机。
