产品描述
减速电机在12VDC下的参数表
|
Stage 段数 |
Ratio 减速比 |
Rated current 额定电流 |
Rated speed 额定转速 |
Rated torque 额定扭矩 |
Max.momentary current 最大瞬间电流 |
Max.momentary torque 最大瞬间扭矩 |
Weight 重量 |
|
| 1 | 3.789:1 | 734 mA | 2982 RPM | 16.2 mNm | 1057 mA | 24.3 mNm | ||
| 1 | 4.313:1 | 734 mA | 2620 RPM | 18.3 mNm | 1057 mA | 27.5 mNm | ||
| 1 | 5.077:1 | 734 mA | 2226 RPM | 21.6 mNm | 1057 mA | 32.4 mNm | ||
| 2 | 14.4:1 | 734 mA | 785 RPM | 52 mNm | 1057 mA | 78 mNm | ||
| 2 | 25.8:1 | 734 mA | 438 RPM | 93 mNm | 1057 mA | 140 mNm | ||
| 2 | 40:1 | 734 mA | 283 RPM | 145 mNm | 1057 mA | 218 mNm | ||
| 3 | 80.2:1 | 734 mA | 141 RPM | 246 mNm | 1057 mA | 369 mNm | ||
| 3 | 111:1 | 734 mA | 102 RPM | 341 mNm | 1057 mA | 512 mNm | ||
| 3 | 130.8:1 | 734 mA | 86 RPM | 402 mNm | 1057 mA | 603 mNm | ||
| 3 | 250:1 | 734 mA | 45 RPM | 768 mNm | 1057 mA | 1152 mNm | ||
| 4 | 304:1 | 734 mA | 37 RPM | 793 mNm | 1057 mA | 1190 mNm | ||
| 4 | 345.9:1 | 734 mA | 33 RPM | 903 mNm | 1057 mA | 1355 mNm | ||
| 4 | 407:1 | 697 mA | 28 RPM | 1000 mNm | 1001 mA | 1500 mNm | ||
| 4 | 664:1 | 462 mA | 18 RPM | 1000 mNm | 648 mA | 1500 mNm | ||
减速电机在24VDC下的参数表
|
Stage 段数 |
Ratio 减速比 |
Rated current 额定电流 |
Rated speed 额定转速 |
Rated torque 额定扭矩 |
Max.momentary current 最大瞬间电流 |
Max.momentary torque 最大瞬间扭矩 |
Weight 重量 |
|
| 1 | 3.789:1 | 367 mA | 2982 RPM | 16.2 mNm | 529 mA | 24.3 mNm | ||
| 1 | 4.313:1 | 367 mA | 2620 RPM | 18.3 mNm | 529 mA | 27.5 mNm | ||
| 1 | 5.077:1 | 367 mA | 2226 RPM | 21.6 mNm | 529 mA | 32.4 mNm | ||
| 2 | 14.4:1 | 367 mA | 785 RPM | 52 mNm | 529 mA | 78 mNm | ||
| 2 | 25.8:1 | 367 mA | 438 RPM | 93 mNm | 529 mA | 140 mNm | ||
| 2 | 40:1 | 367 mA | 283 RPM | 145 mNm | 529 mA | 218 mNm | ||
| 3 | 80.2:1 | 367 mA | 141 RPM | 246 mNm | 529 mA | 369 mNm | ||
| 3 | 111:1 | 367 mA | 102 RPM | 341 mNm | 529 mA | 512 mNm | ||
| 3 | 130.8:1 | 367 mA | 86 RPM | 402 mNm | 529 mA | 603 mNm | ||
| 3 | 250:1 | 367 mA | 45 RPM | 768 mNm | 529 mA | 1152 mNm | ||
| 4 | 304:1 | 367 mA | 37 RPM | 793 mNm | 529 mA | 1190 mNm | ||
| 4 | 345.9:1 | 367 mA | 33 RPM | 903 mNm | 529 mA | 1355 mNm | ||
| 4 | 407:1 | 349 mA | 28 RPM | 1000 mNm | 501 mA | 1500 mNm | ||
| 4 | 664:1 | 231 mA | 18 RPM | 1000 mNm | 324 mA | 1500 mNm | ||
 |

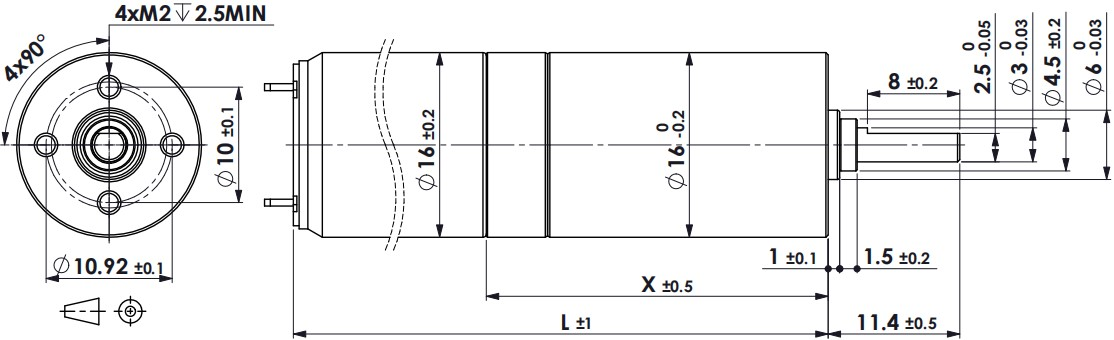

Gearbox stages | Length of gearbox X | Length of gearmotor L |
| 齿轮箱段数 | 齿轮箱长 X | 减速电机总成 L | |
| 1 | 13.6 | 55.6 | |
| 2 | 17.6 | 59.6 | |
| 3 | 21.6 | 63.6 | |
| 4 | 25.6 | 67.6 |
我司可根据客户要求设计和生产相关产品，可适配多类型电机。
