产品描述
技术参数 Technical Data
| Description/描述 | Value/值 | ||||||
| Number of gear stages/齿轮级数 | 1 | 2 | 3 | 4 | |||
| Reduction ratio/减速比 |
3.789 4.313 5.077 6.3 |
14.4 16.3 18.6 19.2 21.9 23.9 25.8 27.2 32.0 39.7 |
54.4 61.9 70.5 72.9 80.2 83.0 90.4 94.4 97.7 102.9 111.2 117.2 121.2 130.9 137.9 150.4 162.4 171.2 201.5 250.0 |
206 235 267 276 304 314 343 346 358 370 390 407 421 444 459 479 496 505 523 564 570 595 615 649 664 700 738 764 824 869 947 1023 1078 1269 1575 |
|||
| No-load gear backlash/空载时齿轮回差 | 1.4° | 1.8° | 1.9° | 2.0° | |||
| Max. continuous input speed/最大连续输入转速 | 8,000rpm | 10,000rpm | 15,000rpm | 20,000rpm | |||
| Max. instantaneous input speed/最大瞬时输入转速 | 10,000rpm | 15,000rpm | 20,000rpm | 25,000rpm | |||
| Max. continuous torque/最大连续扭矩 | 500mNm | 1,200mNm | 2,000mNm | 2,000mNm | |||
| Max. instantaneous torque/最大瞬时扭矩 | 800mNm | 1,800mNm | 3,000mNm | 3,000mNm | |||
| Max. efficiency/最大效率 | 88% | 77% | 68% | 60% | |||
| Weight reference value of gearbox/齿轮箱重量参考值(g) | 46 | 61 | 72 | 83 | |||

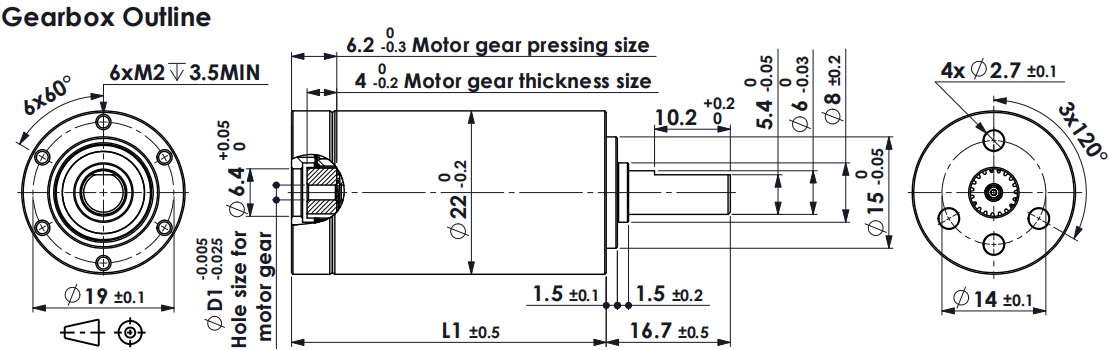

| L1[mm]=Lenght of gearbox/齿轮箱长度 | 18.7 | 26.2 | 31.6 | 37.0 | |||
电机齿轮参数 Motor pinion specifications
|
Initial deceleration ratio 初段减速比 |
Material 材料 |
Number of teeth 齿数 |
Thickness 厚度 |
Hole size 孔径 |
||||
| 3.789 | Steel/钢件 | Z=19 |  |
|
||||
| 4.313 | Z=16 | |||||||
| 5.077 | Z=13 |  |
||||||
| 6.3 | Z=10 |  |
||||||
 |
 |
我司可根据客户要求设计和生产相关产品，可适配多类型电机。
